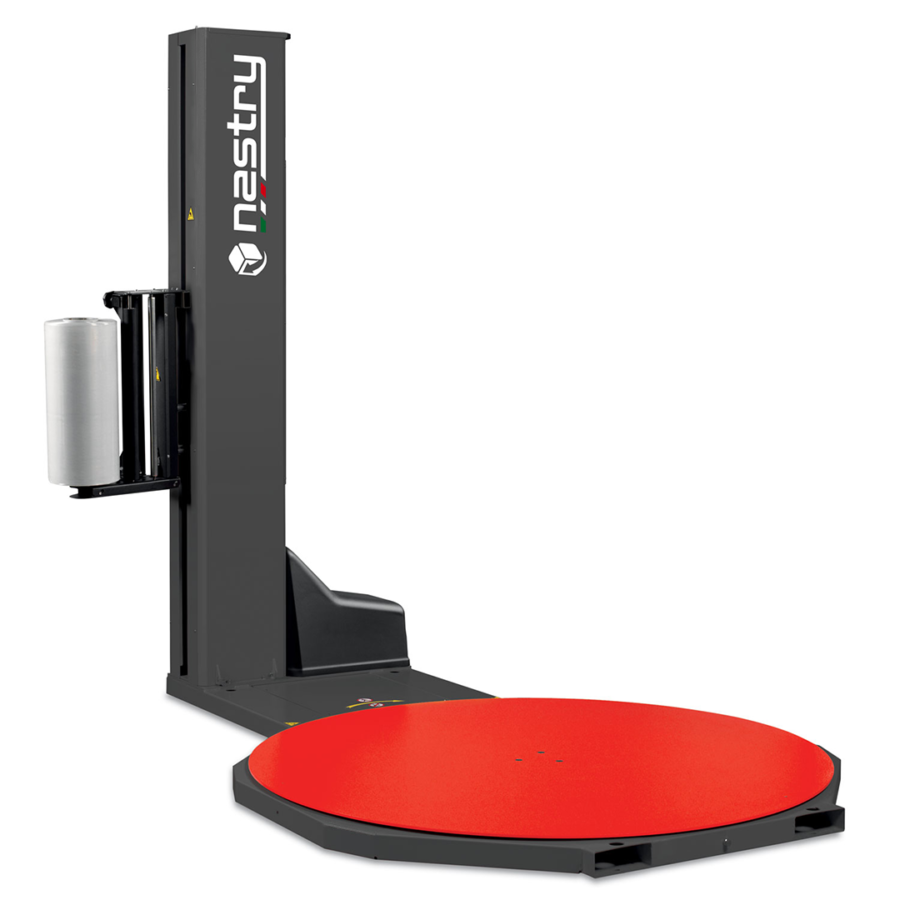

Avvolgipallet a tavola rotante con freno meccanico

TECHNICAL FEATURES

• Load height reading with photocell.
• Gradual and adjustable rotation start/stop with inverter.
• Carriage up/down speed adjustable with independent inverter.
• Cycle start acoustic signal and phase stop at the end of the cycle.
• Emergency mushroom button according to CE standards.
• Machine reset button in operation according to CE standards.
• Emergency/safety stop located at the base of the reel holder trolley.

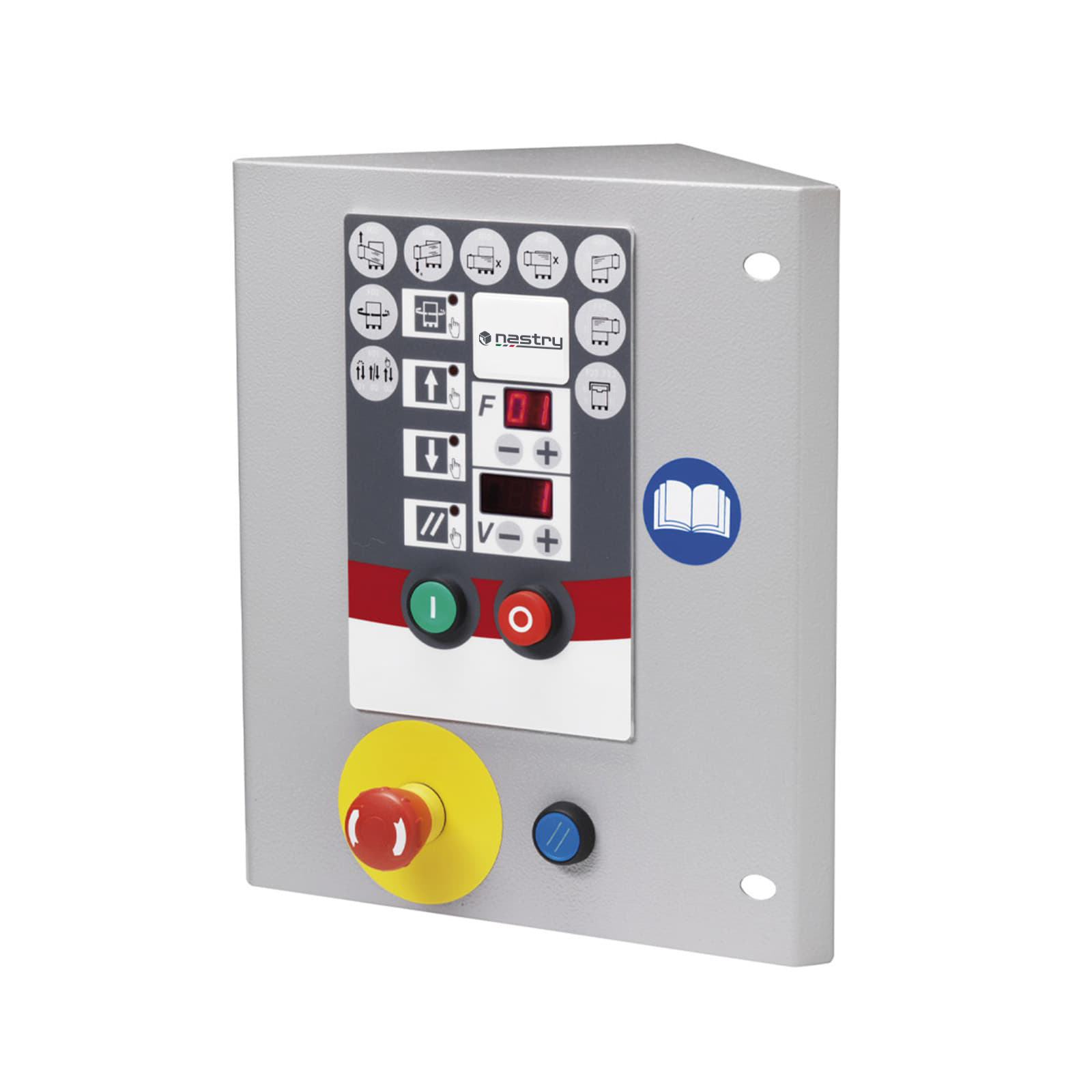

PARAMETERS ADJUSTABLE FROM THE CONTROL PANEL

• Separate rounds at the base/top of the pallet.
• Adjustable rotation speed.
• Separate ascent/descent speeds of the trolley.
• Photocell reading delay.
• Machine manual management buttons.
• Odds Viewer.

BASIC CYCLES SELECTABLE FROM THE PANEL

• Up and down cycle.
• Uphill only/downhill only cycle.
• Manual cycle.

FUNCTIONS THAT CAN BE ACTIVATED ON A BASIC CYCLE

• Feeder cycle.
• Cycle with odds viewer.
• Reinforcement wraps with manual button.

CONFIGURATION

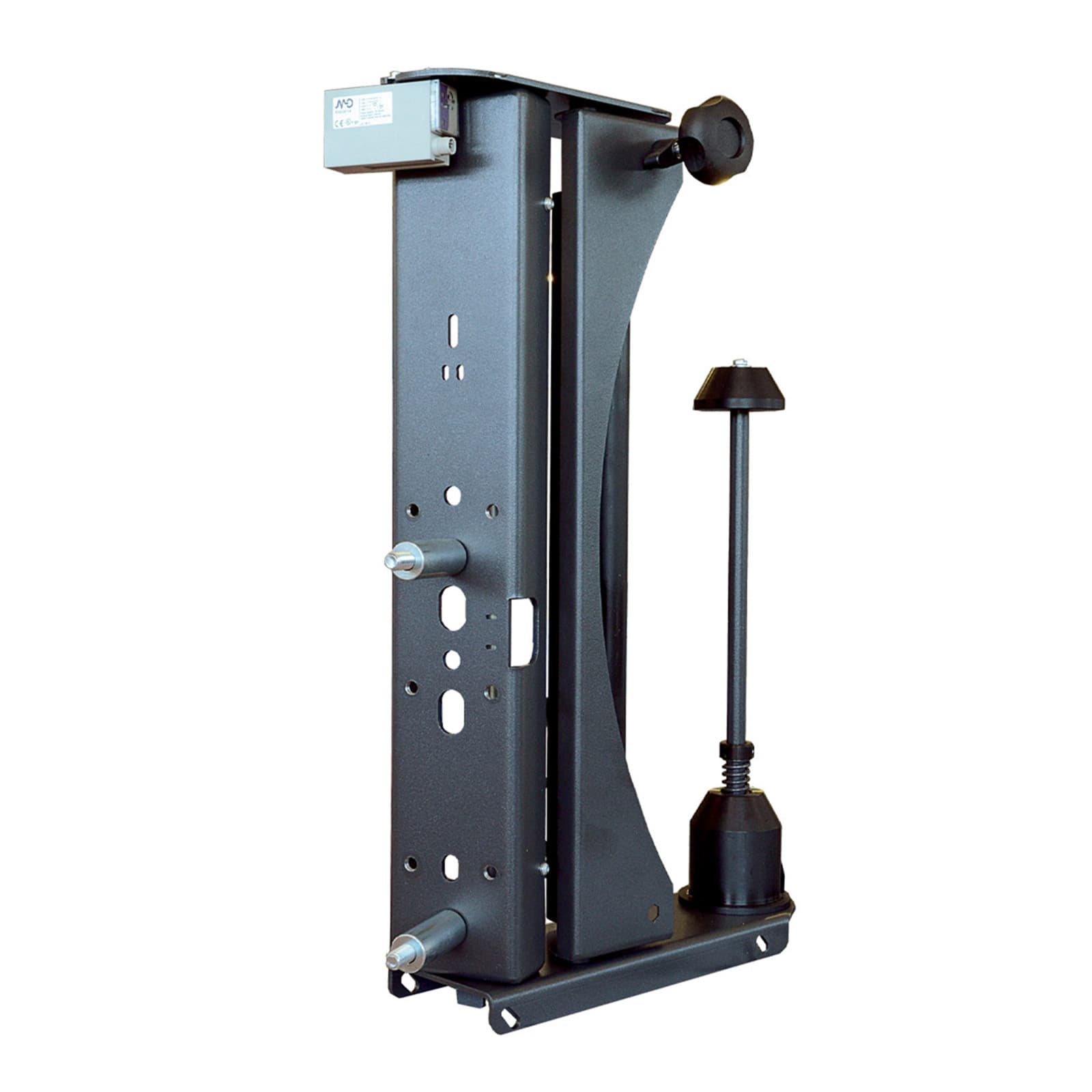

• Reel carriage with friction rollers with manual adjustment
• Usable reel Ø 250 mm with internal Ø 76 mm – H = 500 mm
• On request, coil with internal Ø 50 mm or without core
• Recommended with a coil of 8-12 microns
